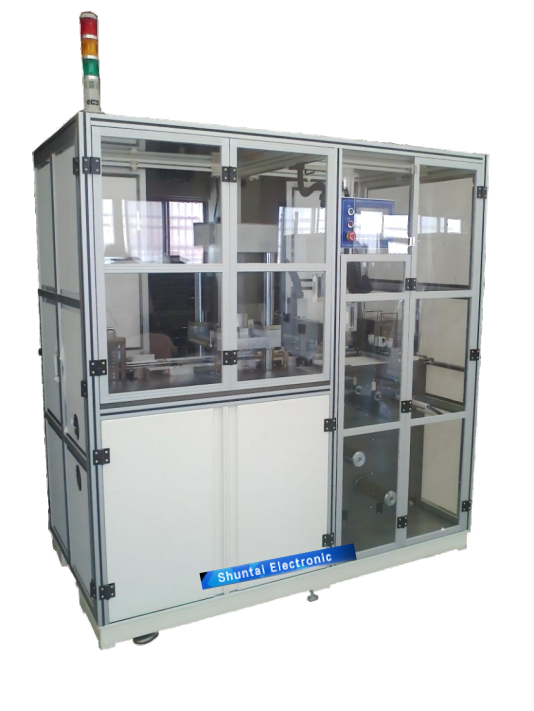

Tape Blanking Machine

134 Views

This device is suitable for the roll of tape after casting, such as cutting with carrier film, film removal cutting, sorting of cutted products, and stacking of cutted products.
•  Automatically blanks the sheets from a roll of green tape and collected in the magazine
•  Compact design with minimal footprint
•  Acceptable customization of different functions, such as punching the registration holes, or blank the green ceramic sheets and laminating with the casting machine

Get a Quote

Category :

Tape Blanking & Punching

Description

Main Features:

◆ Steel frame square tube+sheet metal skeleton (clean room special baking paint), can be customized according to customer requirements

◆ Stable functionality and simple operation.

◆ Automatically blanks single sheets from a roll of tape

◆ Suitable for freestanding or tapes on carrier film

◆ Elimination electrostatic electricity

◆ Wide configurations range

Technical speciﬁcation:

Technical speciﬁcation
Type	Tape Cutting Machine
Carrier Tape Width	200-600 mm max, depends of version, customized
Cutting Length	Adjustable 150-350 mm (10 or 14 inch max.)
Output	Up to 20 cuts/min.
Loading System	Pressure roller vacuum plate adsorption, belt rolling strip: mechanical tension control
Roll Outside Diameter	500(mm) max
Cutting System	Cylinder driven
Transfer System	Sliding table cylinder drive, Vacuum nozzle (customized product) suction; Or, SMC rodless cylinder drive, vacuum flat plate adsorption
Options	Suitable for freestanding or Mylar based tapes Inkjet coding Registration holes punch Edge trimming Sorting sheets based on thickness deviation (tape has to be previously marked) Optical inspection, Sorting sheets according to their quality Add seperation paper , and vacuum packing
