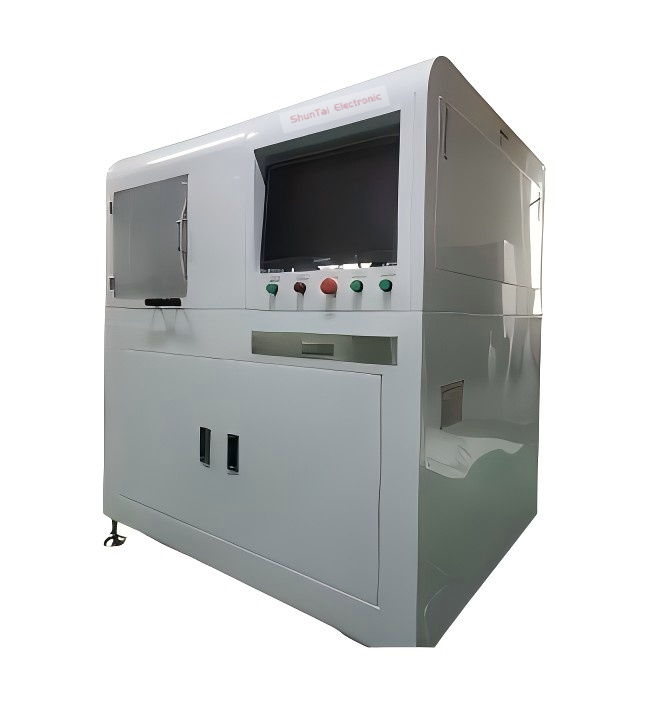

This punching machine is designed to punch holes in to green ceramic tapes. The single sheet was fixed to a metal frame by vacuum suction, and then transported to the punching area using a screw guide. Punching is performed according to the punching program pre-programmed by the user. Then use a mechanical arm to automatically suck up the punched green body and place it in a designated feeding box. We can provide punching machines with single or multiple punching heads, and can design automatic feeding systems according to customer requirements. We can also set the feeding and lifting mechanisms according to the specifications of the film sheets.
Main Features:
• X/Y platform drive: high-precision ball screw and imported AC servo motor.
• The THK guide rail module from Japan ensures the accuracy of the screw, with an accuracy of ± 5 microns.
• A Vacuum frame holds the sheet during punching
• Manual programming, CAD input
• Tool breakage detection
• Automatic sheet alignment for re-punching
Technical Specification:
| Technical specification | Punching Machines |
| Punching speed | 20 holes/s in distance 1x1mm |
| Punching area | up to 200 x 200 mm |
| Tape thickness | up to 500 um |
| X,Y drive | high precision ball screw and AC servo motors |
| Positioning accuracy | +/- 5 um |
| Programming | manual on the machine or CAD file input |
| Work (sheet) fixing | by vacuum, optional metal frames fixing |
| Carrier film thickness | 25 to 100 microns |
| Punching hole diameter | φ0.2-φ4 mm |
| Control | Industrial control computer |
| Sheet alignment for re-punching: | by camera and punching coordinate calculation |
| Tape handling | Manual by operator, Automatic magazine to magazine, Automatic from roll to magazine |
| Dimensions | 1350*1100*1500mm |
| Power | 3 KW |
