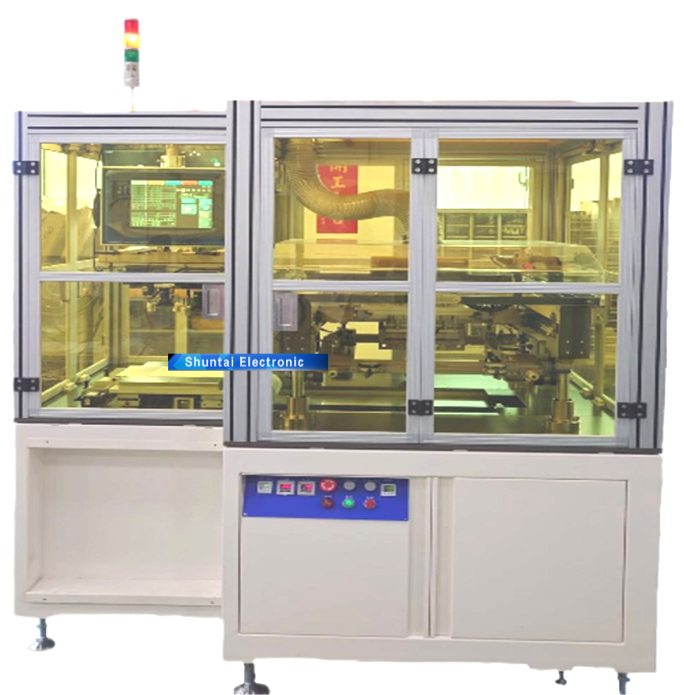

Screen printers designed for diverse and precise screen printing applications in electronic component production, such as: LTCC, MLCC, Inductor, Diverse printing circuits, Photovoltaic, etc. •Fully programmable printing parameters •Reserve upgrade ports for automatic screen printing machines in manual equipment, to reduce customer investment in secondary equipment •Extensive options for demanding advanced technology applications •Wide configurations range •High precision vision system paired with PLC system, closed-loop control, stable and efficient system •Servo motor chain linear ball drive four columns to achieve the lifting/lowering action of the printing stencil, stable and reliable
Main features:
◆ Reserved expansion ports for fully automatic robotic arms, drying ovens, printing graphic detection systems, etc. for easy upgrading
◆ Proven design, high accuracy and flexibility, and simple operation.
◆ Fully programmable printing parameters, print/print, print/flood, flood/print, on contact print, stencil printing, via filling and screen cleaning printing modes
◆ Drive the seamless link shaft with servo motor, accurately set the lifting speed and spacing position of the screen holder,Overcome the problem of sticky plates due to high viscosity, and improve the accuracy and yield of products.
| Technical specification | |
| Type | Screen Printer |
| Max. Printing area | MAX:210*210mm |
| Squeegee speed | 10mm/sec-600mm/sec |
| Squeegee force | 1-10 Kg |
| Alignment | Manual alignment by micrometer, Or CCD automatic vision alignment system |
| Print Average accuracy: | ±0.010mm, ± 0.005 mm ( C C D ) |
| Table Transmission Mode | Servo motor+Electromagnetic positioning+ THK linear slide rail+Timing belt |
| Standard screen size | 450*450*25mm, can be customized |
| Stencil Transmission Mode | Servo motor linked linear ball drive |
| Stencil Registration | ±0.005mm |
| Stencil Frame Fix | Cylinder and Mechanical lock |
| Drier Length | 4 M |
| Options | Printing area; Screen size; Printing quality inspection, including graphic and weighing detection Drier Legnth Vacuum pump Two vacuum systems on the printing table, equipped with breathable paper to protect the printing table for via filling process |
