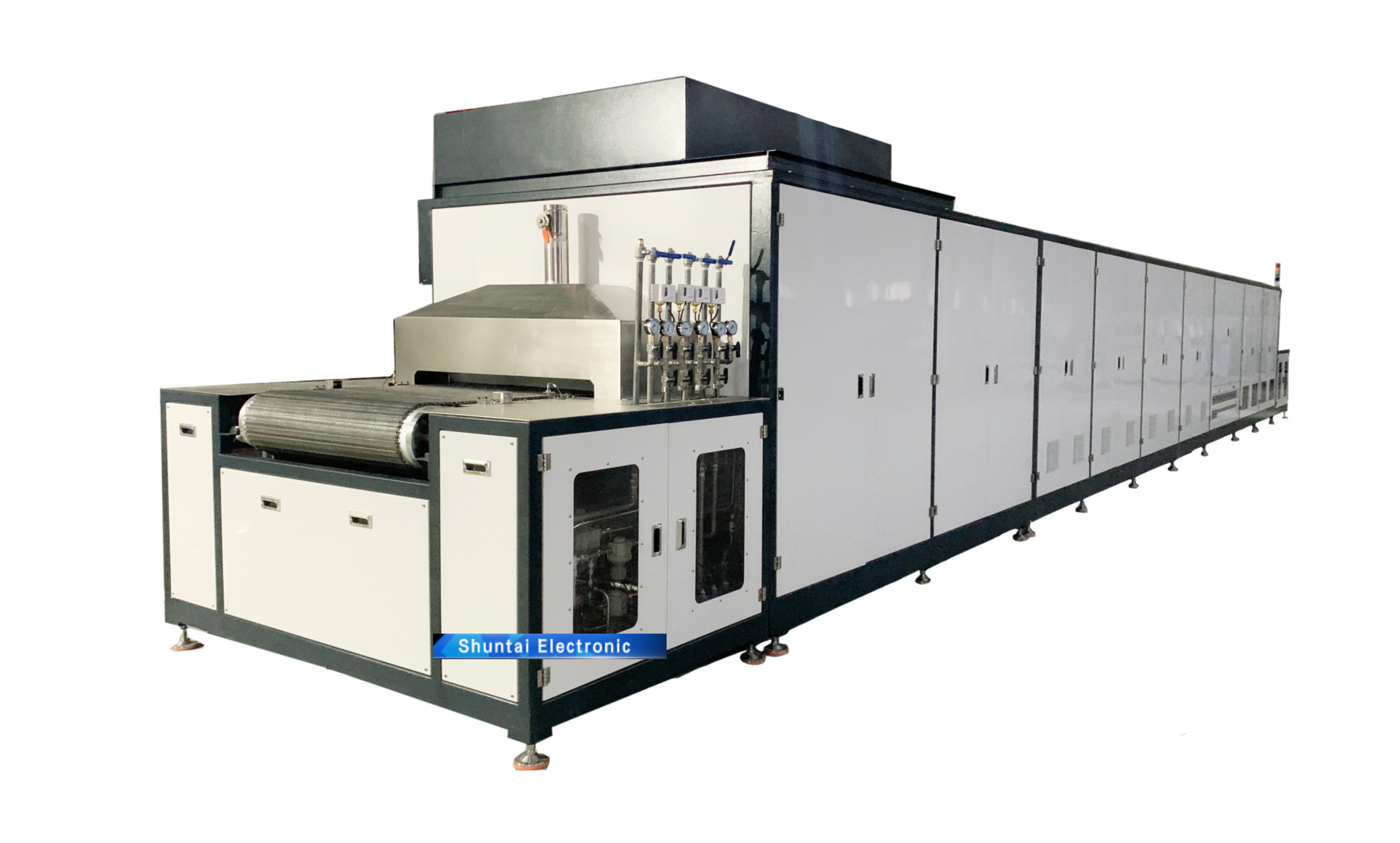

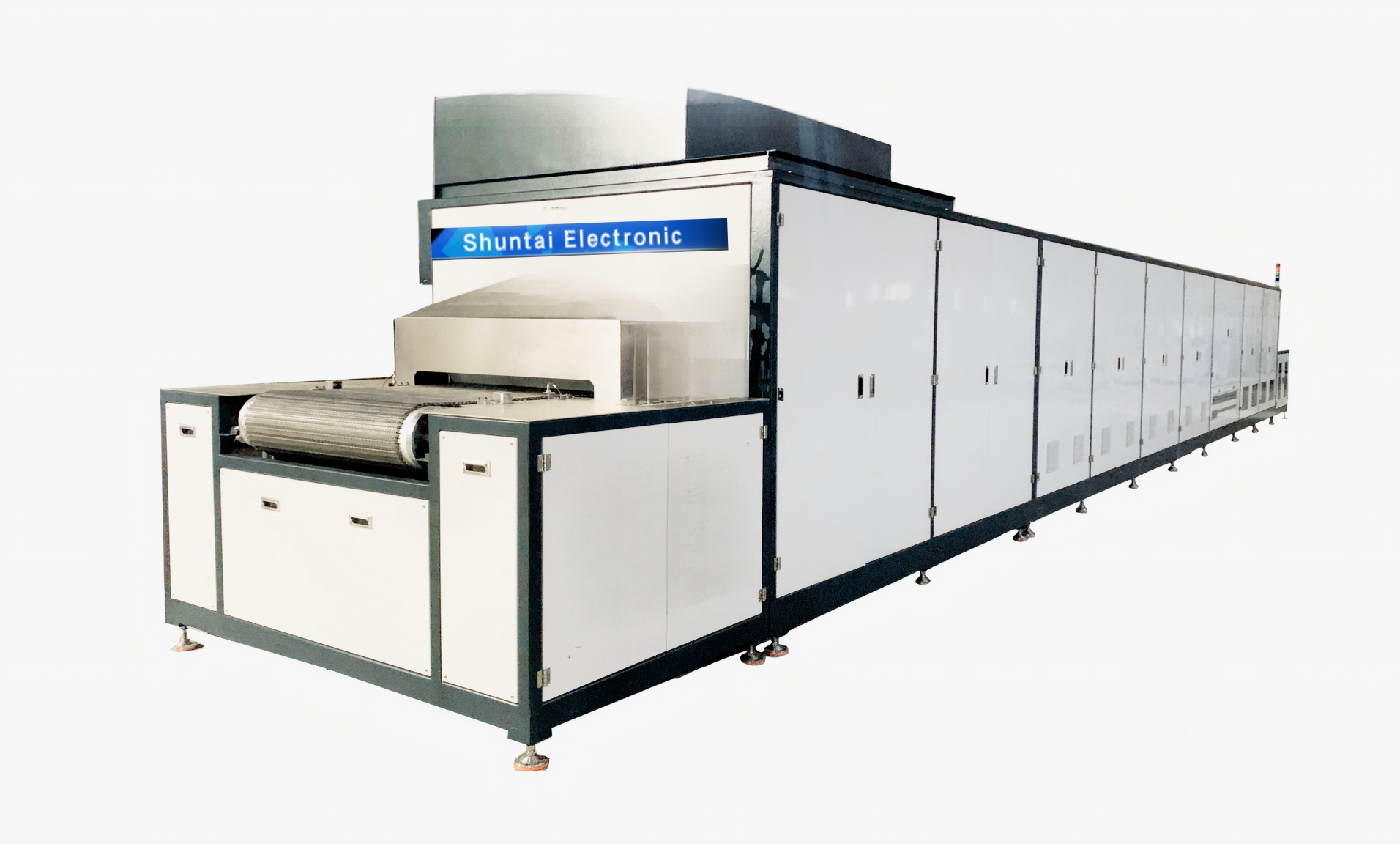

It is suitable for fast-burning process of high-capacity and high-voltage nickel electrode chip ceramic capacitor chips. It is sintered by re-oxidation process under nitrogen atmosphere, which can replace the re-oxidation furnace imported from Japan and South Korea.
Main Features:
◆ The furnace refractory is made of light inorganic materials and nano materials, which is energy-saving and environmentally friendly, and its thermal insulation performance is better than imported similar equipment.
◆ The temperature of the temperature zone is independently controlled, the temperature control accuracy is high, and the temperature uniformity is good.
◆ The furnace air intake is controlled by mass flowmeter and digital display rotameter, and the atmosphere is controlled accurately to meet the process requirements.
◆ Mesh belt conveying smooth, automatic correction function.
◆ Intelligent automatic control system, can store 30 process curve, configure remote data acquisition, monitoring function.
◆ Suitable for mass production, to meet customer process requirements, stable product quality.
Technical specification：
| Sintered products | Chip Capacitor High Capacitance Products |
| Width of mesh belt | 850mm |
| Maximum use temperature | 1000 ℃ |
| Common Temperature | 950 ℃ |
| Maximum heating power | About 310KW |
| Insulation power | About 187KW |
| Main furnace body size | 13000x2000x2500 mm |
| Overall dimension | About15500x2000x2500 mm |
