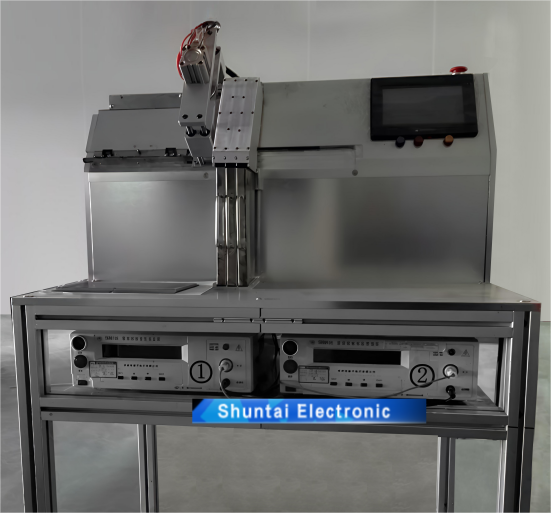

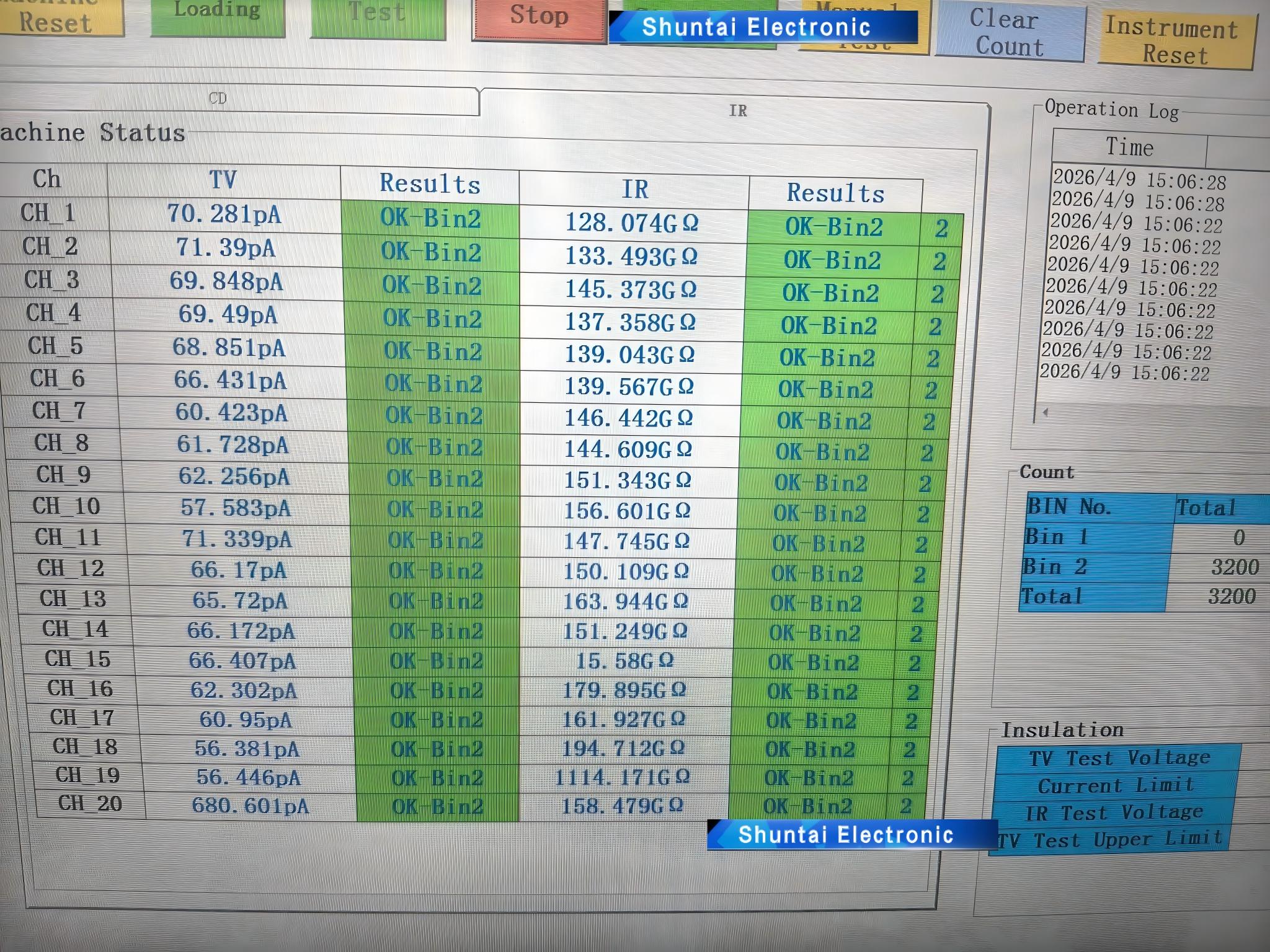

Based on the electrical properties of the tested product (MLCC capacitor),and following customer-defined process,this tester will screen and sort the product's withstand voltage (TV) and insulation resistance (IR). Unqualified and qualified products are categorized and sorted into corresponding receiving bins based on their grades. Additionally, the system incorporates data statistics and collection functions,allowing product measurement results to be saved in a file for convenient viewing.
| Item | Details | |
| 1 | Feeding | Feeding By Manual; Feeding System(Option):Includes vibrator and vibration seat. Simply place the test board on the vibrator and import the product to complete automatic product loading. |

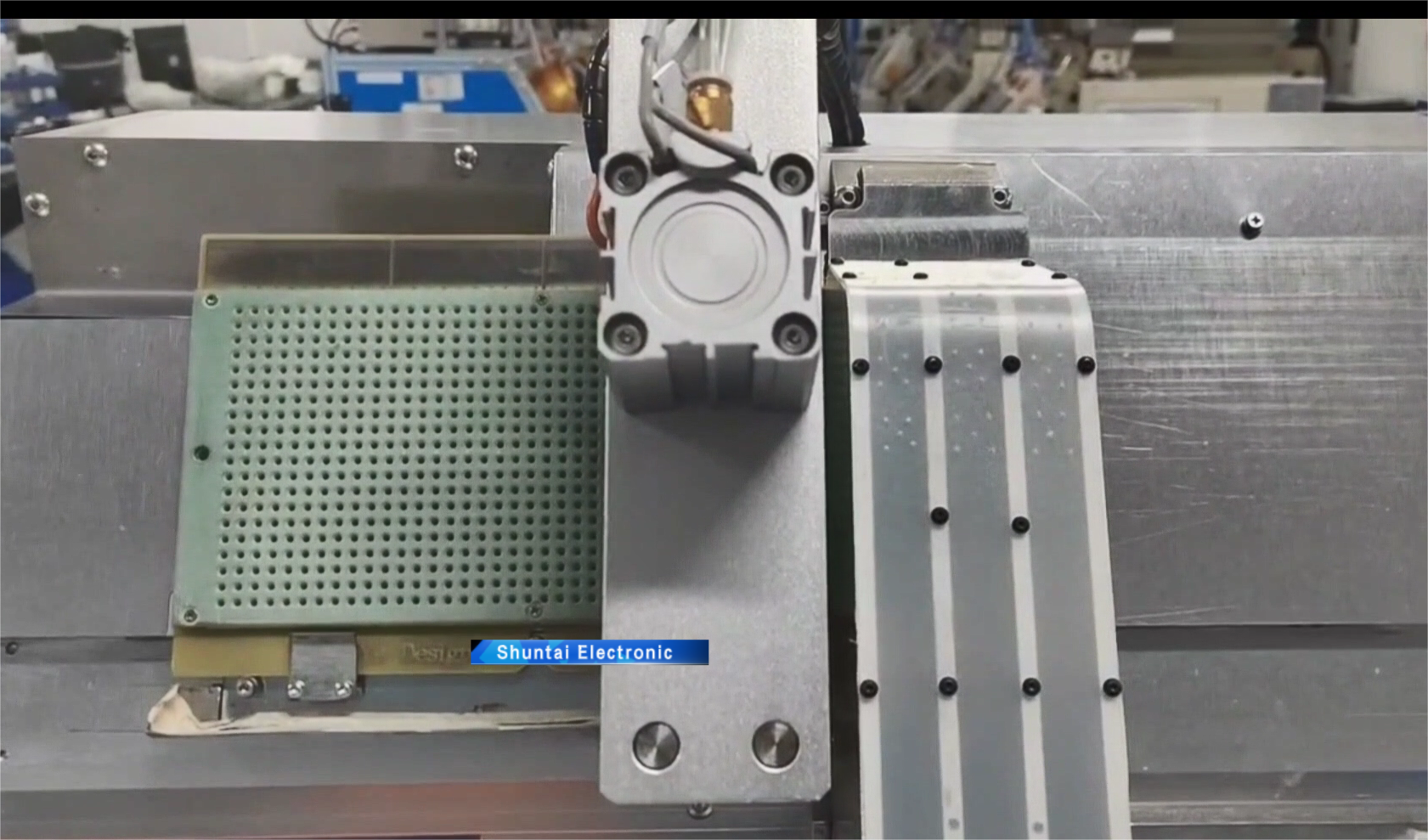

| 2 | Sorting | The main components include: material tray for loading the tested components, testing fixture, sorting cylinder, and sorting bin, etc; |
| 3 | Testing Mode | Using upper and lower electrodes for testing |
| 4 | Standard equipment equipped with testing instruments | 2 high impedance testing instruments, programmable DC power supplies (customizable by customers or configured according to optional requirements) |

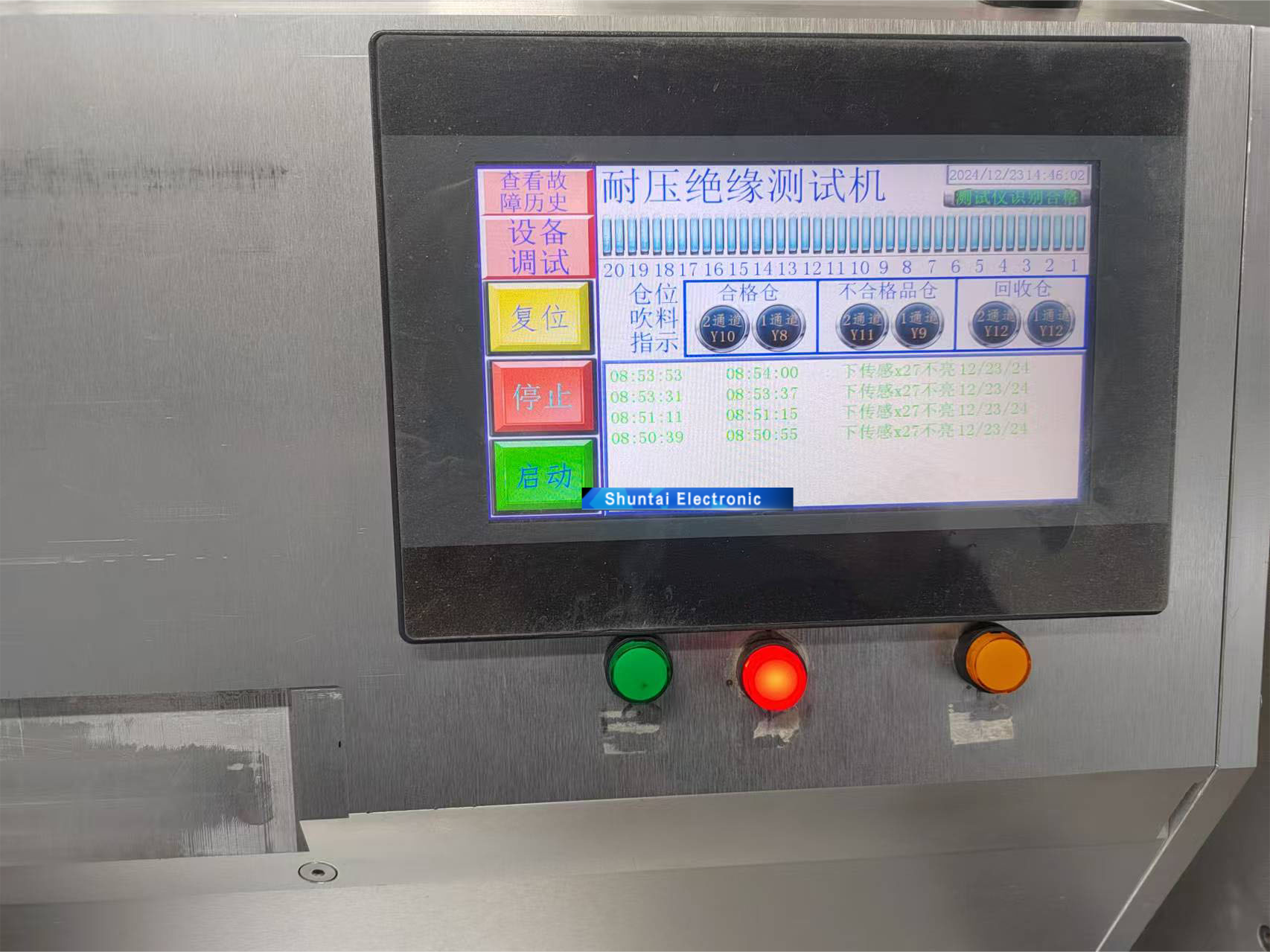

| 5 | Control system | Adopting advanced PLC system control, touch screen input, with data statistics function and test result display function, etc. |
Type of loading and subsequent measurement of sorted capacitors: Test Plate (sorted capacitors are loaded into test plates, in which voltage withstand (TV) and insulation resistance (IR) measurements are performed)
Technical Specification:
1. Capacitors Size: 0603/0805/1206/1210, etc.
2. Test Voltage Range: 1V to 1000V,DC
3. Voltage Select-able Resolution:1V, Voltage Precision:3%
4. Voltage Soak Time:0.1～999.9S,Select-able in 0.1 second steps
5. Leakage current limit values:1µA to 199 µA
6. Resistance testing range:1MΩ～50GΩ
7. General Size:L×W×H = 1100×950×1050(mm)
8. Weight:Around 360kg；
9. Air:0.4~0.65mpa；
10. Power:220VAC/50Hz, 3KW；
