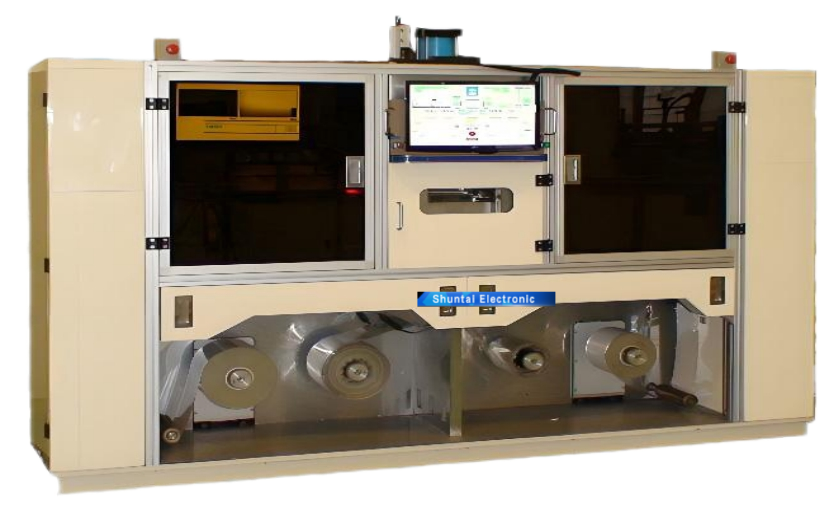

The Roll to Roll Stackers were specifically developed for high layers count applications need to be stacked automatically, for MLCC, LTCC, HTCC or other similar components; • German Backhoff PC Control System • Ethernet communication, real-time monitoring and display • Each axis uses Japanese YASKAWA servo motors, which have high operating accuracy and good stability • Stable performance, simple operation, high alignment accuracy
Main Features:
◆ Pressure system: using servo oil pressure system, pressure range 1000kgf~20000kgf.
◆ Vacuumize the press area to reduce the entry of air into the bar block during stacking
◆ Top and bottom platform, heater euipped, MAX:100℃±3%; Depth of parallelism:±10 um.
◆ Carrier film removed,four knifes for trimming
◆ EPC system correction, edge accuracy ± 0.2mm
Technical Specification
| Roll to Roll Stackers Technical Specification | ||||
| Model | RS200 | RS300 | RS400 | |
| Carrier Foil Width | MAX:200mm | MAX:300mm | MAX:400mm | |
| PET Thickness | MAX:50um; MIN:13um | |||
| Ceramic Sheet Thickness | 10-30um | |||
| Stack System | Stack Size | MAX:175mm | MAX:225mm | MAX:310mm |
| Stack Thickness | Max 5mm (500 layer) | |||
| Align | 2X2Y CCD align | |||
| Cutting | Synchronous cutting with 4 cutting knives | |||
| Press Method | Oil Pressure | |||
| Oil Pressure System | Servo control system, real-time pressure display, pressure range max:30T | |||
| CCD Vision System | CCD Qty | Total 4 ，( 2CCD for position, 2CCD Accuracy checking after stack) | ||
| CCD Precise | ±5um | |||
| CCD Area | 150~320mm(Adjustable) | |||
| Conveyor system | Transfer | Vacuum drum conveyor, ultrasonic EPC positioning feeding, servo motor high-precision distance calculation | ||
| Stop | High precision photoelectric sensor detects | |||
| Removal System | Size | 235*300mm | 285*400mm | 370*500mm |
| Platform driven | Precision screw+servo motor drive, ±1um | |||
| Cooling | Air flow cooling | |||
| Stack System | Bottom side Size | 230mm | 270mm | 355mm |
| Platform driven | Precision screw+servo motor drive | |||
| Platform driver accuracy | ±1um | |||
| Vacuum | Fine pore vacuum adsorption | |||
| Heater | MAX:100℃, ±3% | |||
| Top side Size | MAX:175mm | MAX:225mm | MAX:310mm | |
| The upper platform can be pushed out | Route：500mm,Convenient for tool replacement | |||
