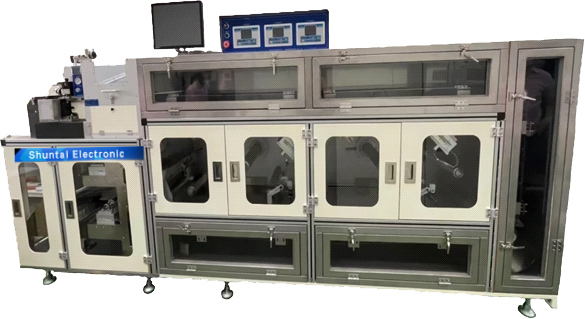

LTC Series Laboratory tape casters are made to cast slurries in labs or small scale production. A needfor higher automation levels, higher accuracy and compact design, led to this innovative casters. • Suitable for green ceramic thicknesses from 5 to 100 microns(Up to support 500um) • Suitable for solent based and water based systems • Automatic tracking of carrier foil • Compact design for small floor space
Main Features:
◆ High accuracy in thickness control and stability
◆ After buffering the slurry, it flows through the casting knife
◆ Advanced slurry dosage control and micrometer thickness control
◆ Stepper motor controlled automatic gap setting
◆ Integrated design, with a more reasonable and compactstructure.
◆ The drying area adopts a sealed design to ensure that all dryvolatile gases are discharged from the exhaust pipeline
◆ Air pressure pressurized feeding bucket method, combinedwith laser photoelectric detection of liquid level height, control thesupply of slurry precisely.
◆ EPC position correction system ,ultrasonic sensor andconiroller control, with an accuracy of + 0.2mm.*Wide configurations range
Technical specification
| Laboratory Tape Casters Technical specification | |
| Type | LTC-Series |
| Carrier Tape Width | Max 250 mm, can be customized |
| Casting Width | 203.2 mm, depends on casting box width, can be customized |
| Drying | Heating plate(Room Temp-120℃) + Hot air (80℃) |
| Drying Area Length | from 2 to 6 meters, available in 1 m steps |
| Carrier Tape Tension Control | Perceptron+Digital Display Controller |
| Correction method | EPC system，Ultrasonic sensor and controller，accuracy ±0.2mm |
| Slurry Supply | Automatic gravity slurry feeding, Or Pneumatic stirring the pressure bucket |
| Doctor Blade | Upper Panel-based |
| Casting Speed | 0.1-6 mm/min adjustable |
| Dry Tape Thickness | 5-500um(According to material) |
| Thickness Accuracy | ±1um+2% of tape thickness |
| Options | Casting Width; Tape Thickness Measurements; Slurry supply( Gravity supply, Pressure bucket pressure supply, Gear pump supply), equipped with liquid level sensor, automatic control of liquid level height; Dying zones extensions |
