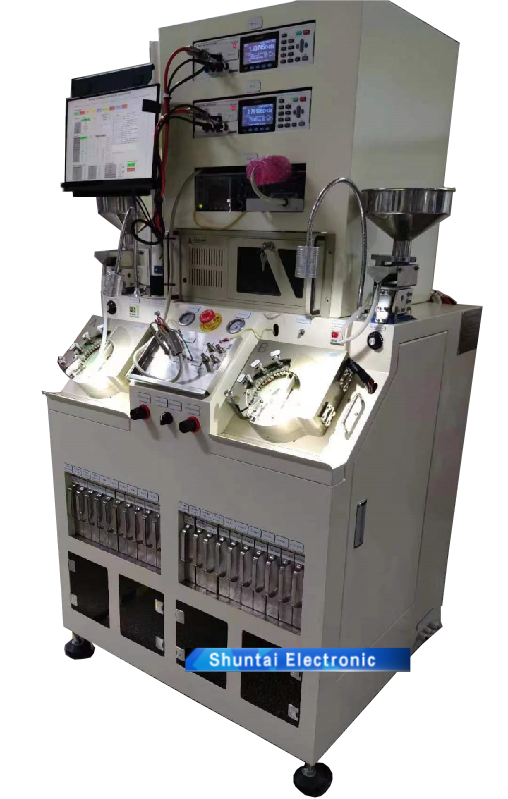

This device is designed for automatic testing and sorting of chip components accoridng to their electrical characteristics. Based on the measurement results, the products are placed in bins of their respective specifications • Capacitors Size: 0201、0402、0603、0805、1206、1210, etc,. • Test items: Capacitance （CAP）、Dissipation Factor （DF）、Voltage withstand（TV）、Insulation resistance （IR）
Main Features:
◆ Max Speed: 750 PCS/ Min
◆ Ten sorting bins available.
◆ Test voltages for electrical strength testing : 1-1000V DC. Highest withstand voltage test can reach 2000VDC
◆ Chips are tested individually in the rotary carrier plate with a sliding contact and sorted according to preset parameters.
◆ Chips are transported by the rotary test plate to the test position where they are probed
◆ Chip quantity real-time display
◆ Equipped with data statistics and collection functions, product measurement results can be saved in files for easy viewing.
| Chip Size | Spec(mm) | ||
| L | W | T | |
| 0201 | 0.6 | 0.3 | 0.3 |
| 0402 | 1.0 | 0.5 | 0.5 |
| 0603 | 1.6 | 0.8 | 0.8 |
| 0805 | 2.0 | 1.2 | 0.6~1.2 |
